Key Features

  • Highest capacity fiber optics connector available
  • Lowest loss attenuation
  • Self-cleaning, self-protecting Shield Shroud
  • Rapid Flip quick polarity change technology
  • Extending Reach-and-Release handle
  • Multimedia capabilities

Two flexible sizes:

  • SWK™ L Connector supports 32f – 192f strands
  • SWK™ S Connector supports duplex (2f) or QFSP (8f – 12f) configurations

Core Benefits

  • Maximize your fiber strand capacity with minimal loss and signal degradation
  • Cut costs with the lowest cost-per-connection solution in the industry
  • Eliminate connectivity problems: the self-cleaning Shield Shroud reduces debris and contaminants up to 98.99%
  • Choose the connector that adapts to your specific connectivity requirements, today and tomorrow – no need to change infrastructure

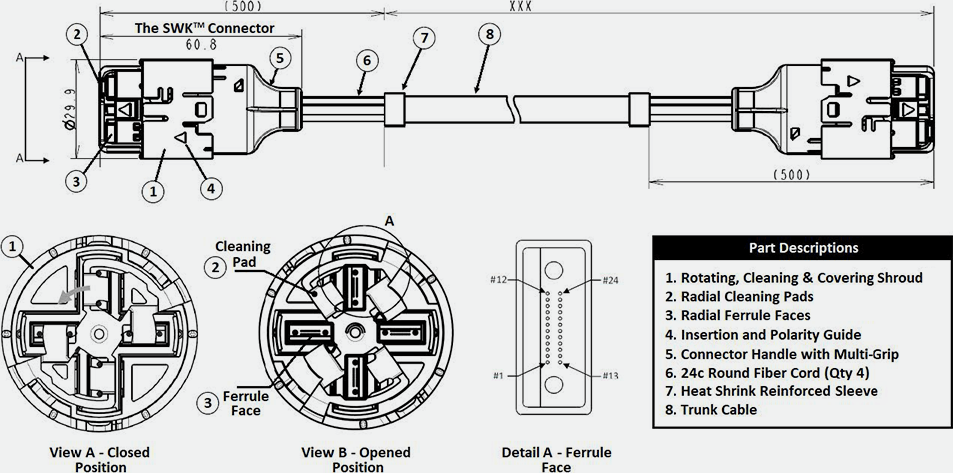

Product Construction

Number of Optical Fibers

96f strands. 32f, 48f, 64f, 144f and 192f strand configurations also available

Types of Optical Fibers

Single mode (OS2, ITU-T G654.D, G.657. A1 compliant) or multimode*

Cable Sheath

OFNP rated, OD: 9.0 mm (±10%), and LSZH (available upon request)

Cord Sheath

OFNP rated, OD: 3.0 mm, and LSZH (available upon request)

Cable Blend Radius

Installation: 180 mm. Operation: 90mm

Cord Band Radius

Bend radius of 24c fiber round cord: 25 mm

Cable Weight

60 kg/km

Performance Characteristics

Connector Type

SWK™ 96f Strand

Optical Fiber Type

Single mode

Insertion Loss @ 1310nm

< 0.35dB

Return Loss @ 1310nm

> 55dB

Temperature Range

Connector: -40 to 70°C
Connector: -20 to 70°C

The Revolutionary SWK™ Product Line

Today’s connected network infrastructure faces unprecedented demands from cloud and hyperscale growth and their extraordinary connectivity requirements. Our revolutionary SWK™ cabling infrastructure products are designed specifically to provide high density and low loss connectivity, ease of installation and manageability, low-cost deployment and operations, and flexibility for growth and scale.


This patented breakthrough in connectivity technology was created to make the user capable again.

  • Features the highest fiber strand capacity in a single connector interface.
  • Outperforms with the lowest loss attenuation in a multi-strand platform.
  • Boasts a remarkable rotating, covering Shield Shroud that cleans the ferrule faces and protects them from contaminants, making cleaning kits and dust caps a thing of the past.
  • Uses our innovative Rapid Flip technology so that polarity adjustments can be done on the fly.
  • Provides optimal control and the most efficient use of space with our patented Reach-and-Release handle.
  • Multimedia capable: Hosts fiber, copper, and more within a single connection.
